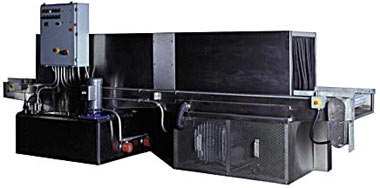

HARRIS TOOL COMPANY MODEL NO. PTW-3 PASS THROUGH WASHER WITH FOLLOWING MACHINE SPECIFICATIONS:

• TOGGLE SWITCH OPERATED STAINLESS DISC TYPE OIL SKIMMER
• 18KW ELECTRIC HEATER
• TANK DEBRIS SCREEN BASKET(180 SQ. IN.)
• 7.5 HP CAST IRON VERTICAL SEALESS PUMP W/SCREEN(150 GPM @ 55 PSIG)
• THERMOCOUPLED PROCESS HEAT CONTROLLER W/ DIGITAL READOUT
• 62 SPRAY JET NOZZLES
• 220 GALLON CLEANING SOLUTION SLOPED TANK
• LOW WATER SHUT-OFF SWITCH
• 500 LB. LOAD CAPACITY
• 19” INSIDE LOAD HEIGHT X 24” CONVEYOR WIDTH OPENING W/ NEOPRENE CURTAINS & BAFFLE SEAL
• 1/4 HP SPROCKET/CHAIN DRIVEN CONVEYOR
• 0-15 FT./MIN. CONVEYOR ADJUSTABLE SPEED RATE
• 240/480/60/3 ELECTRICAL CONTROL PANEL(PLEASE SPECIFY VOLTAGE)
• EASY REMOVEABLE ACCESS PANELS FOR NOZZLE SERVICE
• 10 GAUGE TANK/12 GAUGE DOOR & CABINET STEEL PLATE MATERIAL
• 6” DIA. CABINET VENT AND STEAM HOOD
• 72” OVERALL HEIGHT
• 60”W X 150”L FLOOR SPACE REQUIRED
• FRAMEWORK DESIGNED FOR PORTABILITY
• PRECAUTION BLUE PAINT
• 2500 LBS. SHIPPING WT.

HARRIS TOOL COMPANY MODEL NO.S PTW-1 & PTW-3
PASS THROUGH WASHER OPTIONS:

• FILTER READY PLUMBING
• FILTER SYSTEM
• 480V/60HZ/3PH ELECTRICAL REQUIREMENTS
• 24 HR./7 DAY HEATER TIMER
• 24 HR./7 DAY SKIMMER TIMER
• AUTOMATIC WATER FILL
• TANK INSULATION
• METERING SOAP INJECTION SYSTEM
• ELECTRIC EYE CONVEYOR STOP
• NATURAL/LP GAS HEAT SOURCE
• AIR BLOWER SYSTEM
• SS CABINET, TANK, HOOD, PLUMBING, CONVEYOR, & SPRAY JET NOZZLES
• CUSTOM INSIDE LOAD HEIGHT AND CONVEYOR WIDTH SPECIFICATIONS
• 2 & 3 STAGE CUSTOM PTW SYSTEM
